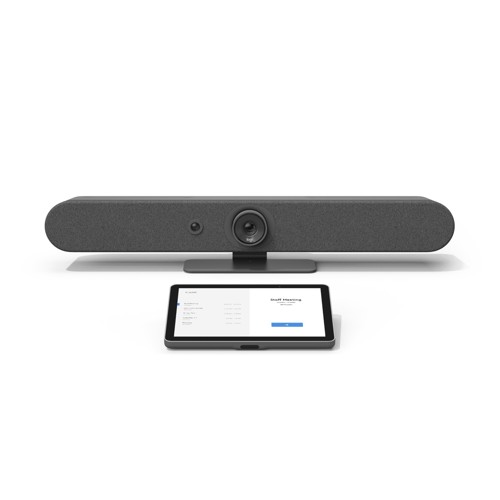

ALL-IN-ONE VIDEO BAR FOR SMALL AND MEDIUM ROOMS Uncover an exceptionally straightforward video conferencing solution featuring outstanding optics, AI-driven audio enhancements, seamless remote management through Logitech Sync, and additional advanced features. EXPAND THE CONVERSATION Add up to three Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls. EVERYONE IS SEEN AND HEARD AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers. MANAGE REMOTELY WITH SYNC Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

• Rally Bar Mini
• Power supply
• AC power cord
• HDMI cable
• USB cable
• Remote control
• Lens caps for main lens and AI Viewfinder
• User documentation

Logitech 2-year limited hardware warranty

DimensionsHeight: 3.6 in (91.4 mm) Width: 2.36 ft (719 mm) Depth: 3.98 in (101 mm) Lens Depth: 0.73 in (18.5 mm) Weight: 8.88 lbs (4.03 kg) Details Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference Device Management: Logitech Sync Displays Supported: 2 Display Resolution: Up to 1080p Network Protocol Support: IPv4, IPv6 Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file Camera Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps Pan: Motorized ±25° Tilt: Motorized ±15° Zoom: 4X HD digital zoom Diagonal Field of View: 120° Horizontal Field of View: 113° Vertical Field of View: 80.7° Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical Woofer Speaker Driver: 2.7 in (70 mm) Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter Rated Power: 8W THD: 1kHz < 2% at 1W Speaker Sampling Rate: 48KHz Impedance: 4 Ohms Midrange Speakers Drivers: 0.08 x 1.69in (2x 43 mm) Sensitivity: 84 dB SPL @ 1W/1M Rated Power: 4W THD: 1kHz < 2% at 1W Speaker Sampling Rate: 48KHz Impedance: 4 Ohms Microphones Frequency Response: 90Hz – 16kHz Sensitivity: >-36dBFS +/-1 dB @ 1Pa Microphone data rate output: 48 kHz Pickup Range: Up to 23 ft (7m) Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) Noise suppression: AI based de-noising algorithm Add-on Mics: Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms RightSense™ Technologies RightLight: Renders natural skin tones for each participant RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. Interfaces HDMI Out: 2 (up to 1080p) HDMI In: 1 USB: 3x Type A, 1x Type C Network: 10/100/1G Ethernet WiFi: 802.11a/b/g/n/ac External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable) Remote Control: Bluetooth® Low Energy Power & Cables Power supply: Auto-sensing Operating Voltage/Power: 100-240V, 19V, 4.74A Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm) DC Cable: 5 ft (1.5 m) AC Cable: 3.28 ft (1 m) HDMI 1.4 Cable: 6.5 ft (2 m) USB A to USB C 3.0 Cable: 7.2 ft (2.2 m) Environmental Operating Temperature: 0 to 40°C Storage Temperature: -40 to 70°C Humidity: 10 to 95% BTU/hr: 57 idle, 64 in meeting Security Full Disk Encryption: AES-128 Data Encryption: Symmetric Keys, PKI Device Identity: Protected by device attestation Device Access: Authenticated using API Key Protection: Arm TrustZone, RPMP

Internet Connection: Wired or wireless USB Mode: Windows 11, Windows 10, the two most recent versions of macOS Appliance Mode: Room solution software license (not included)
